(updated 020930)

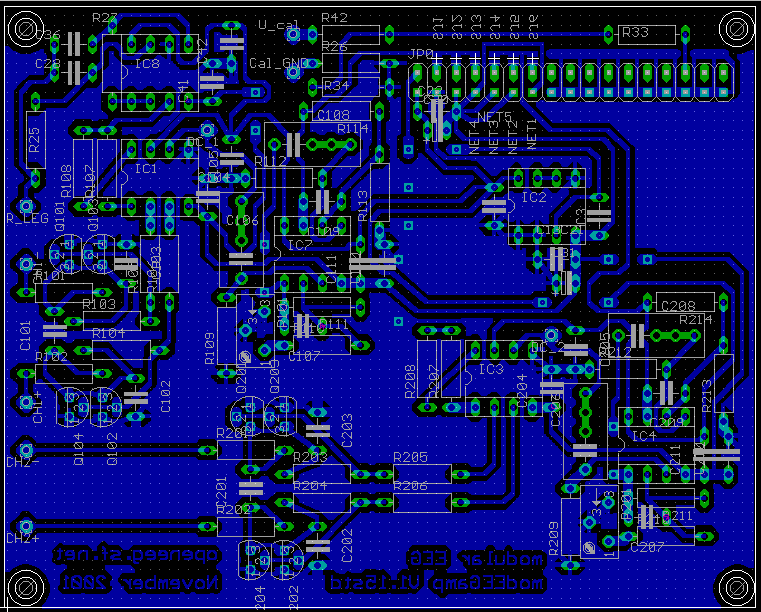

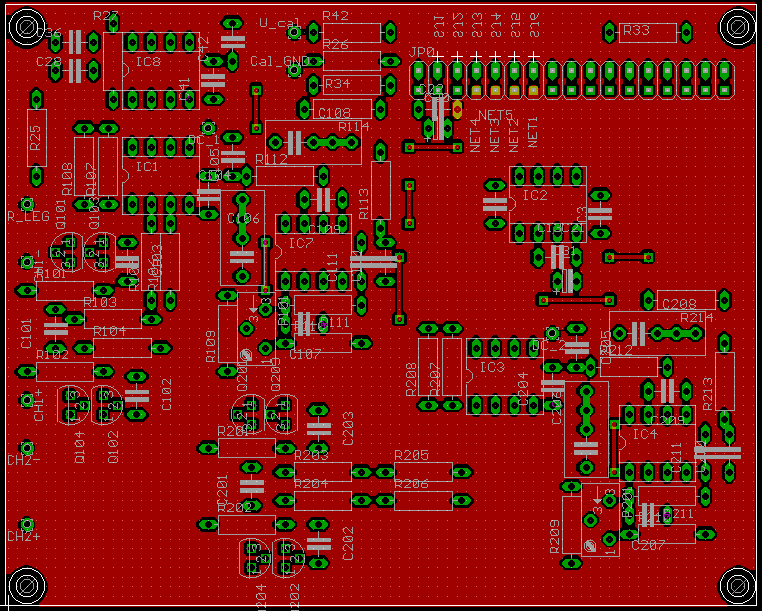

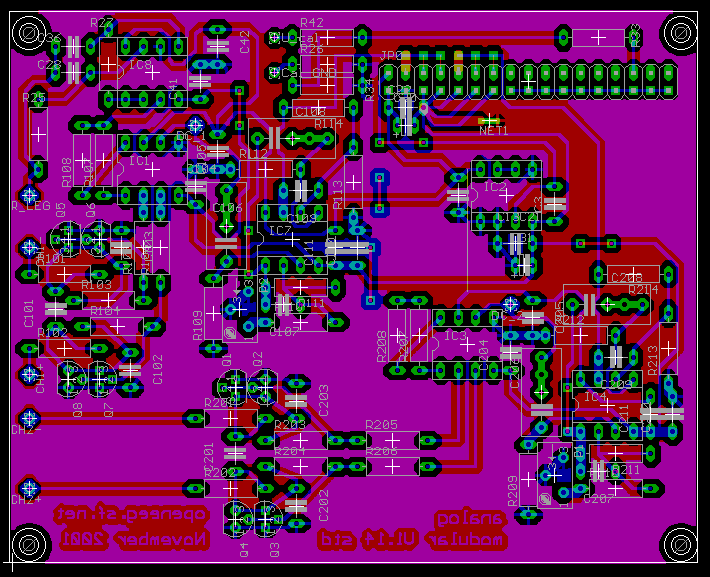

The most advanced and therefore recommended design on this page is the modularEEG which is a part of the openEEG designs.

For recent modularEEG files or other openEEG designs and infos see:

If you are interested in more information, join the openEEG mailing list on sourceforge, where the HW and SW of the openEEG (modularEEG) is developed and discussed.

For Debugging and testing of the modularEEG go here.

Simulations with LTSPICE (freeware) are here.

Old projects

(not recommended)


If you choose to use the OpenEEG project hardware and/or software to do biofeedback training or experimentation on yourself or others, you do so ENTIRELY AT YOUR OWN RISK.

The software and hardware designs are distributed in the hope that they will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

Whilst our aim is to create a genuinely useful set of tools for neurofeedback training and experimentation, it is quite possible that our software, hardware or its accompanying documentation contain bugs or mistakes which its authors cannot be held responsible for. Please bear in mind that we are a group of experimenters and enthusiasts, and many of us have no formal training or qualifications in this field.

Doing neurofeedback training can also cause unpleasant side-effects for a small number of people, or in certain unusual circumstances. In an attempt to provide information to allow you to better judge the risks to yourself, we are listing here the ones we are aware of. (Remember, though, we are not experts, and you should research the subject yourself if you want to be sure):

- Electrocution. If there is an isolation failure in the EEG unit (for example through faulty construction), and the EEG subject touches a live mains voltage (for example, touching an appliance where the earthing has failed and there is a short-circuit to the casing), then the mains voltage will take the shortest route to earth. This means passing up the arm, to the head, through the electrodes, through the isolation failure in the EEG unit, to the PC and then to earth. This electric shock to the head is likely to have severe consequences. It is important to take care when building the EEG unit to make sure that the isolation is not compromised.

- Anxiety attacks.

- Stimulation of latent seizure activity to full seizure activity.

Disclaimer for the EEG designs on this page and all related files:

The EEG designs on this page are _not_ FDA nor IEC601-1 approved. Therefore they must _not_ be connected via electrodes with humans or animals. Doing so is potentially hazardous and might result in electric shock.

The EEG designs on this page are only intended to be an engineering example for making electrical measurements under simulated electrical conditions and a platform for developing firmware for the microcontroller in the modularEEG or RS232EEG circuit and the host PC.

The EEG designs are presented as an engineering example of some design techniques used in digitizing brainwave signals. They are not medically approved devices, no medical claims are made for these devices, and they should not be used for medical diagnostic purposes.

The authors do not guarantee that the data provided in the above mentioned files is complete or appropriate for any particular application.

The authors are not responsible for any damages you may suffer as a result of using/building/programming the EEG devices. This includes also damages to your computer or any device connected to the EEG devices.
